Hobbywing XRotor Micro Combo Stack - F7 FC + 60A 4-in-1 BLHeli_32 ESC

by Hobbywing
Sold out
$129.50 - $129.50
$129.50
$129.50 - $129.50
$129.50

The XRotor Micro Combo from Hobbywing continues to impress with its latest iteration. The Micro Combo features a 60A 4-in-1 ESC along with an updated F7 Flight Controller. This new FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system.

he XRotor Micro Combo from Hobbywing continues to impress with its latest iteration. The Micro Combo features a 60A 4-in-1 ESC along with an updated F7 Flight Controller. This new FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system.

Make your electronics stack work for you, not the other way around!



VIDEO: Xrotor F7 Convertible Flight Controller

Features

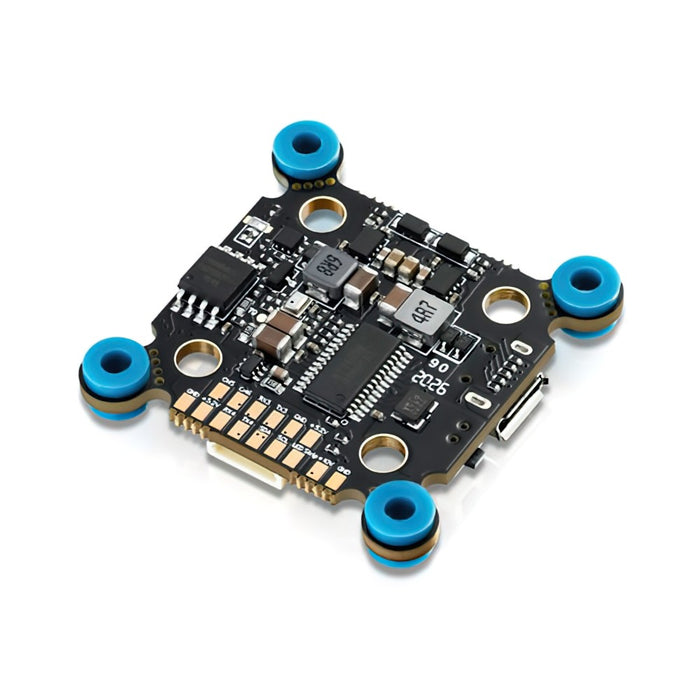

F7 FC

  • Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.
  • Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
  • DJI image transmission system port equipped with corresponding flat cable
  • Supports bidirectional DShot digital throttle communication.
  • Unique installation design and shock absorption structure.
  • On-board large capacity Flash memory chip.
  • On-board 5V & 12V dual BEC circuit.
  • On-board Pit Switch module.

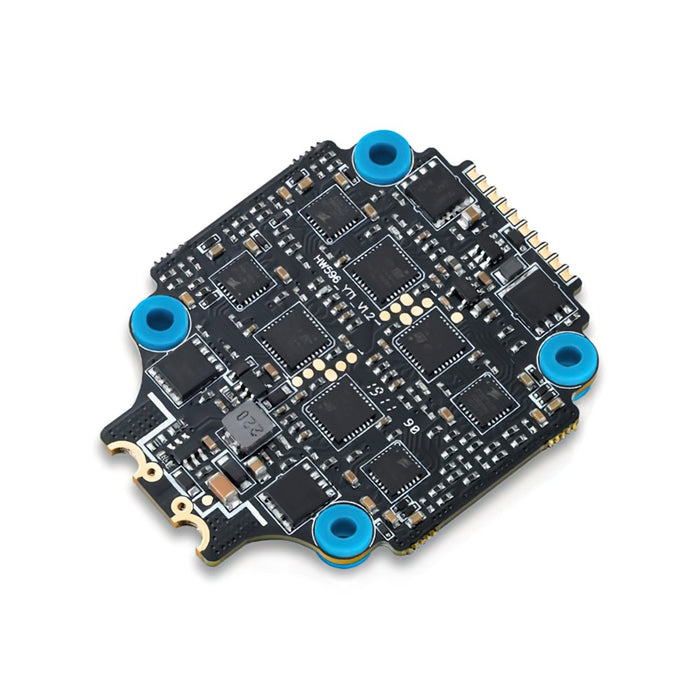

60A 4-in-1 BLHeli_32 ESC

  • All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
  • The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multishot (5-25us).
  • Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up.
  • High-performance 32-bit microprocessor with a running frequency of up to 48MHz for an excellent performance.
  • Onboard 5V BEC, powering different accessories such as FC, VTX, Camera and LED lights and etc.
  • BLHeli_32 firmware is the third generation BLHeli.

Specifications

F7 FC

  • Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
  • Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
  • Mounting Holes: Convertible 20x20mm / 30.5x30.5mm
  • Programming via: Betaflight/Cleanflight-configurator
  • Firmware: HOBBYWING_XROTORF7CONV
  • Voltage Monitoring: Supported
  • Current Monitoring: Supported
  • FC Programming: Supported
  • External Buzzer: Supported
  • BEC: 5V@1.5: 10V@1.5A
  • LED Control: Supported
  • USB Port: MicroUSB
  • Size: 32x32mm
  • OSD: Built-in
  • Weight: 3.3g

60A 4-in-1 ESC

  • Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no
  • Input wires: 12AWG-130mm* (Red/Black)
  • Output Wire: No wires but solder tabs
  • Weight / Size: 15.0g / 52x42x6.6mm
  • ESC Programming: BLHeliSuite32
  • Throttle Calibration: Supported
  • Mounting holes: 30.5x30.5mm
  • LiPo Power input: 3S-6S
  • BEC Output: 5V@ 0.6A
  • Burst Current: 80Ax4
  • Cont.Current: 60Ax4

Manual

Includes

  • 1x Hobbywing XRotor Micro Combo Stack - F7 FC + 60A 4-in-1 BLHeli_32 ESC
  • 1x Soft Mounting Grommets Set
  • 1x Signal Cable
